11/2/08 1:14pm - Original Message: ''82 defroster vacuum leak'
terntes
Former Member
- Send Private Message


Little Rock, AR - USA

Vette(s):
1982 Collector Edition

Joined: 7/10/2007
Posts: 116
  How far into the dash is the defroster vacuum actuator? I've removed the glove box and instrument cluster and I do not see it. I've located the other one for the AC under the dash on the driver's side but, I can only hear the defroster making noise. Do I have to remove the dash and air distrubtion box?
terntes
 Reply Reply  Quote Reply w/Quote

Support C3VR!
Suport our advertisers
11/2/08 6:53pm - Reply: ''82 defroster vacuum leak'
crossfire1982
Standard Member
- Send Private Message


Cramerton, NC - USA

Vette(s):
black 1982 coupe slate gray interior, 350 crossfire, 1985 fuel pump, Steeroids R&P conversion

Joined: 8/22/2006
Posts: 1094

If memory serves correctly, its buried behind the instrument cluster.  I didnt have to remove mine but thought I was having trouble with it  last year.   I could see it with a mirror without removing my center instrument cluster but it was buried so deep I couldnt touch it.  Are you sure its the actuator that is bad?  Have you checked the vacuum hose that supplies vac to the doors.   It runs off of a "T" in the vac line near the brake booster and "T"s into one of the lines that comes off of the metal check valve to the headlight system.  Check the plastic "T" and the hose where it goes through the firewall gromet  before you tear into the actuator if you havent already done that.



____________________________________

Click for a larger image
Save The Wave


 Reply Reply  Quote Reply w/Quote
11/9/08 4:24am - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
Maybe, some of these pics will help you get an idea where they are located. http://www.corvettemagazine.com/content/view/81/
 Hope this helps
John.


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/9/08 12:53pm - Reply: ''82 defroster vacuum leak'
corvette440hp Lifetime Member
Lifetime Member
- Send Private Message


Joined: 7/2/2006
Posts: 8205
[QUOTE=acplus]Maybe, some of these pics will help you get an idea where they are located. http://www.corvettemagazine.com/content/view/81/
 Hope this helps
John.
[/QUOTE] John, great info........thanxThumbs%20Up

____________________________________
corvette440hp
 Reply Reply  Quote Reply w/Quote
11/9/08 7:09pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
Hope it helps.
John


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/9/08 8:32pm - Reply: ''82 defroster vacuum leak'
terntes
Former Member
- Send Private Message


Little Rock, AR - USA

Vette(s):
1982 Collector Edition

Joined: 7/10/2007
Posts: 116
acplus,
  This is a great resource, thanks much!
terntes
 Reply Reply  Quote Reply w/Quote
11/10/08 7:14pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
You are welcome. I am just getting starting a resto on a 1982, I will know more in a week or two after I remove the interior ( if you need to know more)
John


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/11/08 7:32am - Reply: ''82 defroster vacuum leak'
terntes
Former Member
- Send Private Message


Little Rock, AR - USA

Vette(s):
1982 Collector Edition

Joined: 7/10/2007
Posts: 116

  You know what would be great, a step by step series of photos of dash removal and key component identification and locations. I haven't seen that anywhere except in some vague, generic, faded black and white photos in the repair manuals. I know I would use it, probably as well as the rest of the forum users. It's just a thought!

thanks again, Terry.
 Reply Reply  Quote Reply w/Quote
11/12/08 9:08pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
I took step by step photos for the complete resto of the 72 I did, I haven't post to a web site yet, but if you want PM me your email address I will try to send you open dash pics of the heater box.
John


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/13/08 9:03pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
I got your pm, but no email address.
I don't know how to send/post pictures here @ C3VR
The pictures are saved on my computer not a web site...I would gladdly post them here for you, if you know how to.


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/13/08 9:24pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558

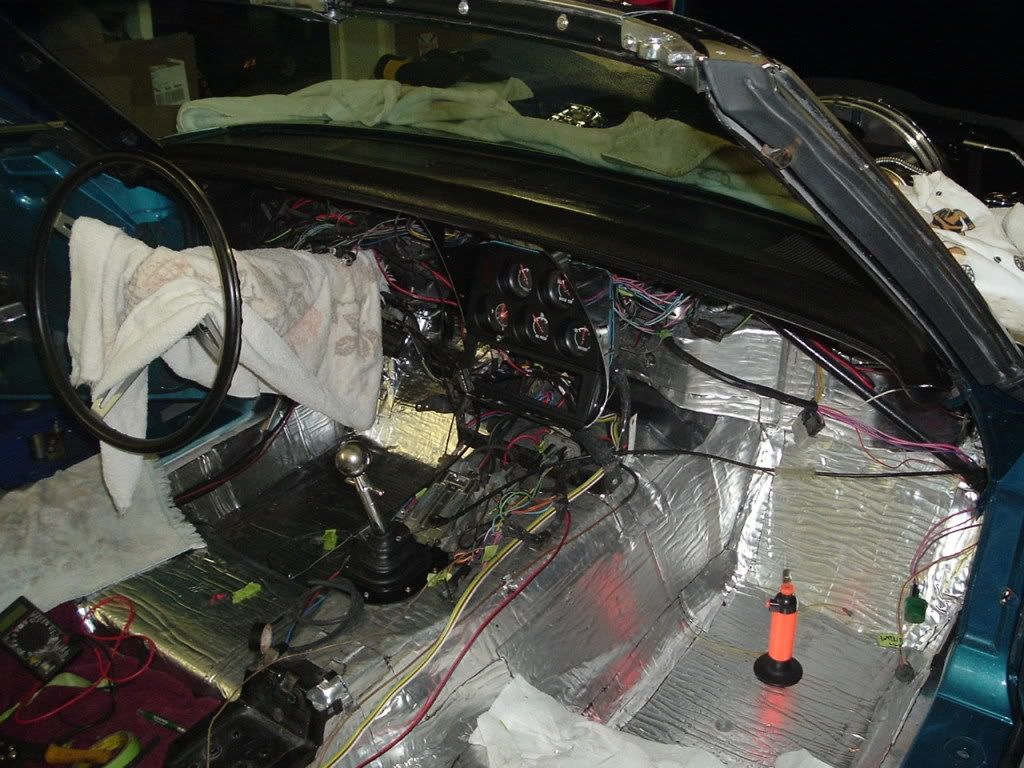

Maybe, this worked.

____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/14/08 8:20am - Reply: ''82 defroster vacuum leak'
terntes
Former Member
- Send Private Message


Little Rock, AR - USA

Vette(s):
1982 Collector Edition

Joined: 7/10/2007
Posts: 116
  Sorry about that! The link just  gives me an icon about a photobucket image. My email is terntes@yahoo.com. I've used photobucket before, let me try to log on to their site and see what happens.
Terry.
 Reply Reply  Quote Reply w/Quote
11/14/08 8:21pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
Sorry I though I was able to post pics..guess not, I will try again for another post, Sent you the pics to your email.
John


____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
11/15/08 11:26pm - Reply: ''82 defroster vacuum leak'
acplus
Former Member
- Send Private Message


, - Canada

Vette(s):
1972, 1980

Joined: 6/23/2008
Posts: 558
There... now the above links are working, sorry about that.

____________________________________

1972 CORVETTE CONVERTIBLE BRYAR BLUE
 Reply Reply  Quote Reply w/Quote
