Hello All  - I found some numbers while cleaning under the hood and was wondering if anyone could help decode:

- Back of block by firewall on drivers side: 3970010
- On manifold behind carb at cap: 3997771 gm2 (?)
- Underneath cap and rotor very hard to make out: c163 (?)

How can you tell if the engine is original to the car?

Thanks in advance!

______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

Jason - not sure about the c-163 you found in the distributor, but the other two are the GM casting or part numbers for the engine block and the intake manifold. The good news is that both numbers are correct for a '73 small block.

______________
John Sigmund

How cool that you can figure out all the way down to the date the car was assembled by decoding these numbers!! Thank you for the information and what/where to look for more. Going under the hood today and will try to search for more numbers! This is like being a detective! :)

______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

in the state of conn  have to show 5 vin numbers,eng,trans,frame,windshield piller,inspector stopped at 4 said that enough   I got my res   plus have vid title      alls well here in conn.in florida I had to bring car for vin check with a valied tidle   alls well in fla   dwa.

Ok found something awesome!

My VIN # is: 1Z37J3S418986
The numbers stamped onto the block on passenger side in front of the head are: 13S418986
(I think the "1" is supposed to be a "J"...but it really looks like a "1" on the block.)
Looks like I have a matching numbers car?!  Woo Hoo!!

Back of block passenger side by firewall looks like C80, but it nearly impossible to decipher.

Unfortunately the extra numbers stamped by the 0010 number beneath the driver's side valve cover right behind carb are impossible to see or get to.




______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

The C163 on the block behind the distributor is the casting date of the engine block....March 16, 1973.



This is the day the engine block was cast....NOT when the engine was assembled. The block would still need machining before assembly, then it would be shipped to the assembly plant for final assembly, which could have been a couple of days, or weeks....or more.


13S418986
The "1" in your partial VIN is definitely a "J", which tells us it is an L-48 engine.
3= 1973 year model
S= St. Louis assembly plant
4= check digit...means nothing(well, it does, but not for our purposes)
18986 is your sequential build number, meaning the 18,986th Corvette built for the 1973 model year.


______________

Joel Adams
C3VR Lifetime Member #56
My Link


(click for Texas-sized view!)             NCRS

"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"

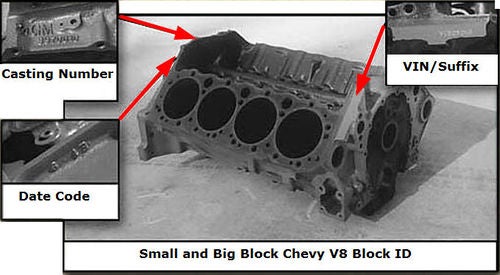

Thank you for the diagram, Adam!  Definitely printing that out for reference!

Here is the best pic I could get of the numbers.  It's a "4" and to me, what should be a "J" looks like a "1".  Is this not normal?  Or are they just too close in appearance?  But you are correct, the engine is an L48!



______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

Jason, don't worry about the 1 and the J, I believe all of the engine stamps started with a 1 and did not match the letter in the VIN. My engine stamp starts with the same 13S while my VIN reads T3S. So beyond the VIN stamping, what other numbers did you find ?? Those should be a slightly larger font starting with a V then 3 or 4 digits which are your engine build date. That should be followed by a three letter code indicating your eng/trans option.

______________
John Sigmund

Thanks VMan, for the reassurance regarding the "1" and the "J". The other set of numbers I found, the larger font, is as follows: V032 CLC. between the 2 and the C, there is an etching that looks like a square. Not a zero but to me looks like a square. I also found back by the firewall passenger side, what looks like C80. Impossible to tell for sure though...

______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

Interesting, the V is correct for Flint, the 032 may indicate a March 2nd, 1973 engine build date, but I think the zero or square you mention between the 2 and the C in CLC might make it 0320 or a March 20th, 1973 build date. Looking at mine they clearly stamped 06 to indicate the 6th of Dec., I would think March 2nd would read 0302 but I could be wrong. The CLC suffix is correct for a 1973 350 cu.in., 190hp, at, ce which means your car was built originally built for California Emmisions, perhaps you have an original CA car !! Do you have any history on where the car came from ?? While we're at it, take a look at your body trim tag (right next to drivers side top hinge with door open). There should be three sets of numbers, the first is a three digit code that indicates the interior trim type and color, the second indicates the original exterior color, the third is in the top right corner and indicates the month and day of the body build date. That may give us another clue if your engine is a March 2nd or March 20th car. My body build date seven days after my engine build date.

|UPDATED|7/3/2015 10:41:06 AM (AZT)|/UPDATED|


______________
John Sigmund

Man this is so COOL!  The previous owner did say that the car WAS purchased in California!  Spent maybe 20 years or so in Cali then slowly made its way down to Southern Wisconsin.  I have TONS of paperwork and receipts...I am almost positive I have the contract from the selling dealer...I will see if I can dig up for you.

For the paint tag:
Chevrolet H28
Trim 425
976 Paint

Since we're on Tags, here's another with a bunch of numbers:



______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

So that's all good news - H28 is a March 28th body build date. Body build months are a little screwy compared to the rest of the system because It starts in August of the previous year, so H = March. Trim 425 is Dark Red vinyl and 976 paint is Mille Miglia red, looked to me from your pic your car is red/red. So back to your engine build date, 032 for March 2nd is possible but I really think 0320 for a March 20th is more likely, either way your dates line up well. That last pic you posted is the Fed Certification label, numbers at the bottom are gross vehicle weight rating and the 3/73 date on the top right corner states the car was certified to the fed standards on March '73 which also lines up with your build date. Have fun as you find more pieces of the puzzle !! Check out this website for more tech info and numbers stuff, www.73spot.com, the guy did a pretty good job and it's all about '73 Corvettes.

______________
John Sigmund

Engine assy date of March 20th would be correct, since the block was cast on March 16th. Body build date of H28 would put final assembly on March 29th. In fact, VIN # 189985 was the last car off the line on March 28th, which means YOUR car was the FIRST car off the line on March 29th. All of the dates line up perfectly for the car. That engine/block is original to the car. Now....dig deeper, and see if the trans/differential/alternator/distributor etc. etc. is original. See what a can of worms you opened up, Jason?

______________

Joel Adams
C3VR Lifetime Member #56
My Link


(click for Texas-sized view!)             NCRS

"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"

Excellent !! Now Jason, look at the last pic you posted of the engine stamp pad. That fuel pump down below, is it the original or not ?? We leave you to seek the truth !!??

______________
John Sigmund

Sadly the fuel pump is not original. Had to get it replaced when I bought the car Because it was leaking. 😭 I will try to track down trans/alternator/diff etc. after the holiday. There are some numbers on the quadrajet. Going to write those down and research as well. I know it's original to vehicle but would be cool to know more about it...where/when built, sequence maybe. VMan- did you see my other post about the carb and hoses?

______________
"You know, we always called each other goodfellas. Like you'd say to somebody: You're gonna like this guy, he's all right. He's a goodfella. He's one of us. You understand?"

DWA175 - Is there a organization state-by-state that provides a matching numbers service for Corvettes?  If so, what would I need to do to get it done?  What did you receive at the end of the inspection?  Does going through this process make a vehicle more valuable?

Thank you!
