Well fella's...Here is what I have for you today...Working on the electrical system. Trying to get the AC and Radio all figured out. I've posted some pictures below with the questions attached...the questions are printed on the picture with MS Paint :) Just click the links...if they dont work copy and pasteAIR CONDITIONING QUESTIONS...

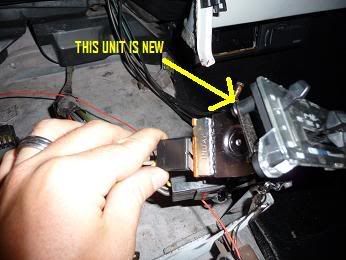

Pic 1
PIC 2

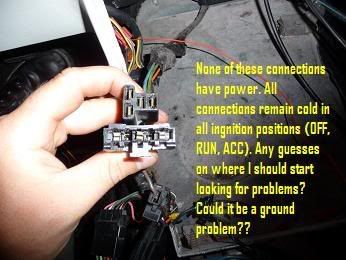

PIC 3
PIC 4

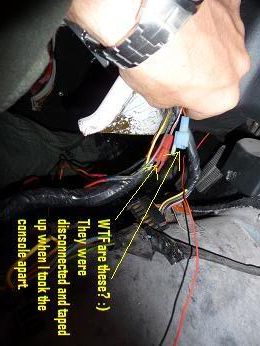

PIC 5
RADIO PROBLEMS / QUESTIONS...

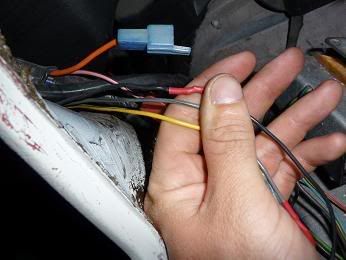

PIC 1
PIC 2
Thanks for the help guys...Seems like I am always asking more questions that I am providing answers...hopefully after all is said and done I will have the experience to start contributing to some problem SOLVING rather than problem CREATING :)-Shane
(created links for pics)
SPONSOR AD:: (Our Sponsors help support C3VR)
Lifetime MemberModerator
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/
Am-Fm/map light National/Regional/Chapter NCRS "Top Flight"
#2-1985 Bright Red/Carmine Cp.L-98/auto
Member: NCRS, NCRS Texas, Corvette Legends of Texas
WTF?!?!?
Sorry, Shane...don't quite speak that language!
Gimmie a minute...i might be able to fix that fer ya...
Sorry, Shane...don't quite speak that language!
Gimmie a minute...i might be able to fix that fer ya...
Joel Adams
C3VR Lifetime Member #56
My Link
(click for Texas-sized view!) NCRS
"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"
LoL. Sorry Joel. I tried to directly link them to the post...that computer class I took in college didn't pay off I guess
I just changed them to direct HTML links...lemme know if that works.
BTW...I just got your email with the diagram...MUCH better than what I'm working with. THANKS!!
-Shane
I just changed them to direct HTML links...lemme know if that works.
BTW...I just got your email with the diagram...MUCH better than what I'm working with. THANKS!!
-Shane
Lifetime MemberModerator
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/
Am-Fm/map light National/Regional/Chapter NCRS "Top Flight"
#2-1985 Bright Red/Carmine Cp.L-98/auto
Member: NCRS, NCRS Texas, Corvette Legends of Texas
Y'elcome, Shane!
I'll have to study the pics for a minute...My bet is on Mike(mkapp78-79) being the one to have the most info on it...and prolly a few pics too!
I'll have to study the pics for a minute...My bet is on Mike(mkapp78-79) being the one to have the most info on it...and prolly a few pics too!
Joel Adams
C3VR Lifetime Member #56
My Link
(click for Texas-sized view!) NCRS
"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"
Lifetime MemberHOWELL, NJ - USA
Joined: 5/18/2004
Posts: 6812
Vette(s): 1979, Targa Blue (72 Color), Pace Car rear spoiler, L88 hood, Dark blue factory interior, 525HP 406, HD 700R4, 370 gears,Steeroids, composite rear spring, TT IIs wrapped in T/A Radials.

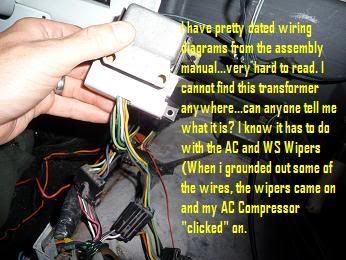

That big silver box looks like your alarm relay if it's on you trans hump.
LukesVette Homepage
Veteran of Operation Iraqi Freedom
101st Airborne(AirAssault!)
God Bless America
Support Our Troops
Luke,
The big silver box thing is on the hump...but does the alarm relay tie into other systems like the AC Compressor and Wiper motor? When I touched my electrical current tester to some of the wires and subsequently grounded them out, i was able to engage my AC Compressor and Wiper motor.
....I'm really just looking to get the AC working and get my radio wiring figured out so I can get my radio hooked up.
-Shane
The big silver box thing is on the hump...but does the alarm relay tie into other systems like the AC Compressor and Wiper motor? When I touched my electrical current tester to some of the wires and subsequently grounded them out, i was able to engage my AC Compressor and Wiper motor.
....I'm really just looking to get the AC working and get my radio wiring figured out so I can get my radio hooked up.
-Shane
The project continues...and yet another problem. Anyone have a fuse box diagram for a 79 Vette. Over the years the print has rubbed off of mine...cant read anything. It would help quite a bit
OK, i'll have to take a look to see what no 3 is.
4 is the wiper delay module, under the radio? Shouldn't have anything to do with the AC tho.

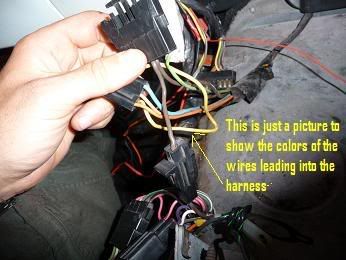

5...what color are the wires? Could be for something you don't have, like the auto trans backup switch. The wires WILL be under there. I have wires tucked up under the dash for a 4speed neutral safety switch on my auto white 79 and different things tucked away on my 4speed 79.

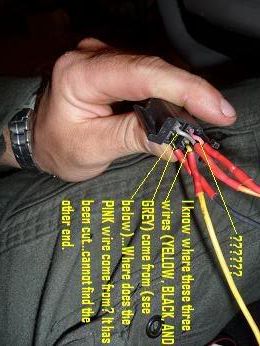

For the radio no 1...pink SHOULD be yellow also. The power feeds the radio with a yellow where it switches the power antenna on with the other yellow. Goes in and comes right back out. Either yellow(your pink?) will power the radio but it will cause other minor problems(for instance, power will backfeed into the radio from the power antenna hot(orange) lead and keep the "stereo" light lit all the time.
Looks like someone returned an original radio to the car? and spliced in a later model pigtail.
Do you have a power antenna? The radio isn't an etr with the digital clock is it?(not correct for 79). That would require an additional always hot lead not part of a 79 harness to power the clock and memory.
Do you have power windows and locks? Defroster?
The fuse next to the turn/bu is clock,cig lite,courtesy lamps
