Fuse location for an '81?

Posted: 3/9/08 8:07pm Message 1 of 8
malo68
Former Member
Send PM
Providence, RI - USA
Joined: 3/1/2008
Posts: 26
Vette(s): 1981 Corvette
I just bought a 1981 Vette.  Could someone tell me where are the fuses located?

Can anyone tell me where I can get a wiring diagram for the car?  Are there any resources online where I might be able to get one?  I see a lot of broken wires under the hood and I'd like to get those straightened out.  Thanks!  George



SPONSOR AD:: (Our Sponsors help support C3VR)

Fuse location for an '81?

Posted: 3/9/08 9:00pm Message 2 of 8
71Shark
Former Member
Send PM
Edmond, OK - USA
Joined: 7/13/2006
Posts: 400
Vette(s): 1971 Brands Hatch Green L48 Coupe Automatic Driver - restored 1995
There is recent thread on wiring diagreams and you can have one sent to you.  I think Joel(Adams Apple) has one for every year.  Your fuses are just above your left foot under the dash.  Very convenient....


Fuse location for an '81?

Posted: 3/9/08 9:03pm Message 3 of 8
Profile Pic
Adams' Apple
Lifetime MemberLifetime Member
Moderator
Send PM
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/ Am-Fm/map light National/Regional/Chapter NCRS "Top Flight" #2-1985 Bright Red/Carmine Cp.L-98/auto Member: NCRS, NCRS Texas, Corvette Legends of Texas
Wiring diagram has already been sent...
The fuse box is hidden waaay up under the driver side, to the left of the brake/clutch pedal. If you're a fairly limber feller, you'll be able to see it easily.


Joel Adams
C3VR Lifetime Member #56
My Link


(click for Texas-sized view!)             NCRS

"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"

Fuse location for an '81?

Posted: 3/10/08 4:36am Message 4 of 8
Profile Pic
DaveM
Lifetime MemberLifetime Member
Send PM
Flanders, NJ - USA
Joined: 1/27/2004
Posts: 2553
Vette(s): 1982 Black, ZZ4, Hooker Side Pipes, 3.55 Rear, Rebuilt & upgraded 700R4, All new suspension, brakes, & new Charcoal interior.
Maybe someone removed the computer and that's what the disconnected wires are from.




Lifetime Member #116
Dave's '82



Fuse location for an '81?

Posted: 3/10/08 4:59am Message 5 of 8
gurtz
Former Member
Send PM
baton rouge, LA - USA
Joined: 8/12/2006
Posts: 391
Vette(s): 1981 dark metallic blue, dark doeskin leather interior, mirrored glass T Tops, 330hp/350ci GMPP crate engine, billeted aluminum serpentine system, Dewitts with dual spalls

If you are not a limber fellow as Joel mentioned, pulling the seat helps out tremendously, as I had to do, due to a bad back!  The computer might be cut loose if it is at the firewall center to right of center.  There are (2) large looms in that area.


good luck, gurtz



Fuse location for an '81?

Posted: 3/10/08 9:34am Message 6 of 8
6880Mike
Former Member
Send PM
Horse Cave, KY - USA
Joined: 10/22/2007
Posts: 488
Vette(s): 1968 convertible; 1980 L-82
[QUOTE=malo68]...I just bought a 1981 Vette.  Could someone tell me where are the fuses located?...[/QUOTE]

Check to see if you have an original owner's manual with the car.  If not, pick your favorite Corvette aftermarket parts provider and order a reproduction.  Lots of valuable information in the owner's manual.  My advice would be to also order the '81 assembly instruction manual.

Smile



Fuse location for an '81?

Posted: 3/10/08 6:06pm Message 7 of 8
Profile Pic
JPD1stVette
Gold MemberGold Member
Send PM
Scotch Plains, NJ - USA
Joined: 1/11/2006
Posts: 241
Vette(s): 1981 Corvette Coupe, Stock, Black on Black, 4 Spd

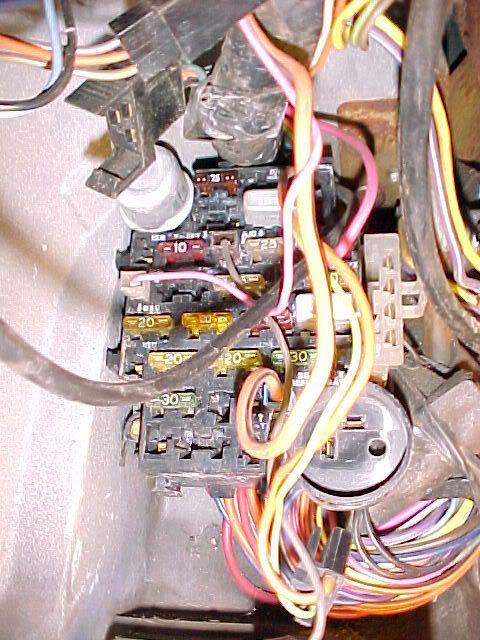

Congratulations on your recent purchase. I hope this photo helps. If you haven't found it yet, this is what your looking for.
If you need more info please let us know.
I also recommend purchasing the 81 Assembly Manual.



Fuse location for an '81?

Posted: 3/13/08 1:55am Message 8 of 8
CeeDee
Standard Member
Send PM
New Zealand
Joined: 3/26/2005
Posts: 232
Vette(s): Silver '81 mostly original C3. Silver interior, bilstiens, big sway bars, headers.
For electrical stuff the '81 GM workshop manual is definitely the way to go. Has excellent circuit by circuit summaries, diagrams, and explanations, as well as diagnostic flow charts. There are a variety of straight full and abbreviated wiring diagrams available on CD, in Haynes, etc, but none of them are close to as good as those in th GM workshop manual. I got mine off Ebay.CeeDee2008-03-13 01:55:55
