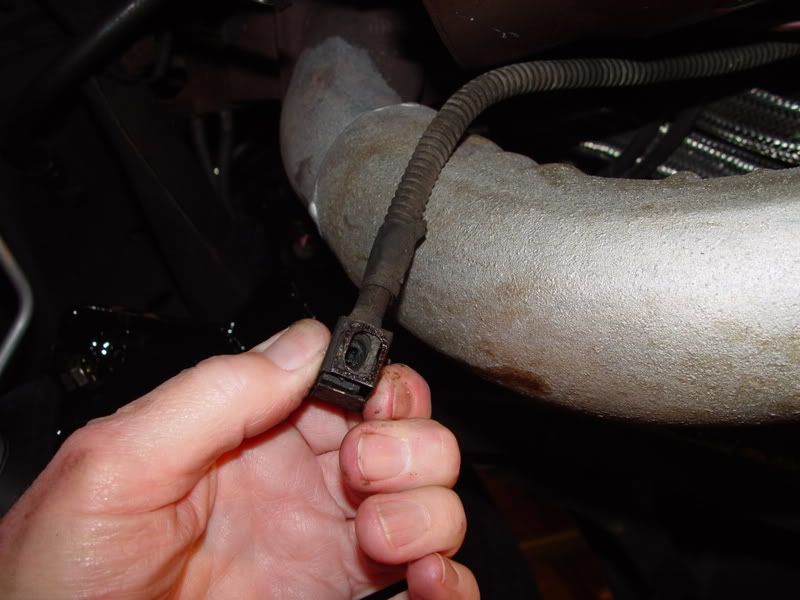

I found this connector loose near my starter yesterday. I did replace my starter this summer. I didn't see it then. The car has run fine the last time I took it out in the late fall. It seems to be attached to the wiring harness that goes into the starter.
Does anyone recongize this connector or where it should go? I'm looking at wiring diagrams and I just don't see it.
Gary
SPONSOR AD:: (Our Sponsors help support C3VR)
Former Member
Send PM
Oak Creek, WI - USA
Joined: 5/21/2008
Posts: 1965
Vette(s): 1981 Great White Shark. Red Interior, 350/190 hp. PS, PB (SS), A/C CC, T-Tops. Served three years in Active Duty Army, then Retired Air Force after 34 years! Badger State Vettes Car Club. 175,000 Original miles!! Now own a 1998 C-5!
I have an 81. Let me look at all the stuff I got and I'll get back to ya!!
Lifetime MemberModerator
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/
Am-Fm/map light National/Regional/Chapter NCRS "Top Flight"
#2-1985 Bright Red/Carmine Cp.L-98/auto
Member: NCRS, NCRS Texas, Corvette Legends of Texas
The only thing I can think of down by the starter would be the knock sensor, but that looks like there are more than just one/two wires in the harness. The pic is a bit blurry for these antique eyeballs..
Is there a hole, or eyelet on that terminal?
Is there a hole, or eyelet on that terminal?
Joel Adams
C3VR Lifetime Member #56
My Link
(click for Texas-sized view!) NCRS
"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"
Lifetime MemberModerator
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/
Am-Fm/map light National/Regional/Chapter NCRS "Top Flight"
#2-1985 Bright Red/Carmine Cp.L-98/auto
Member: NCRS, NCRS Texas, Corvette Legends of Texas
Let's see what Dan comes up with.
Looks like the wires are black, which would suggest they are grounds. With the hole/eyelet on the terminal, it probably should bolt to the engine block. Check to see if there is power(12v+) there with the key on, and also with the key in the "start" position. If there is no power, they are ground wires, and need to be connected to provide grounds for whatever system they are for. I can check the wiring diagrams, and see if anything looks comparable...
Looks like the wires are black, which would suggest they are grounds. With the hole/eyelet on the terminal, it probably should bolt to the engine block. Check to see if there is power(12v+) there with the key on, and also with the key in the "start" position. If there is no power, they are ground wires, and need to be connected to provide grounds for whatever system they are for. I can check the wiring diagrams, and see if anything looks comparable...
Joel Adams
C3VR Lifetime Member #56
My Link
(click for Texas-sized view!) NCRS
"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"
Former Member
Send PM
Cramerton, NC - USA
Joined: 8/22/2006
Posts: 1094
Vette(s): black 1982 coupe slate gray interior, 350 crossfire, 1985 fuel pump, Steeroids R&P conversion

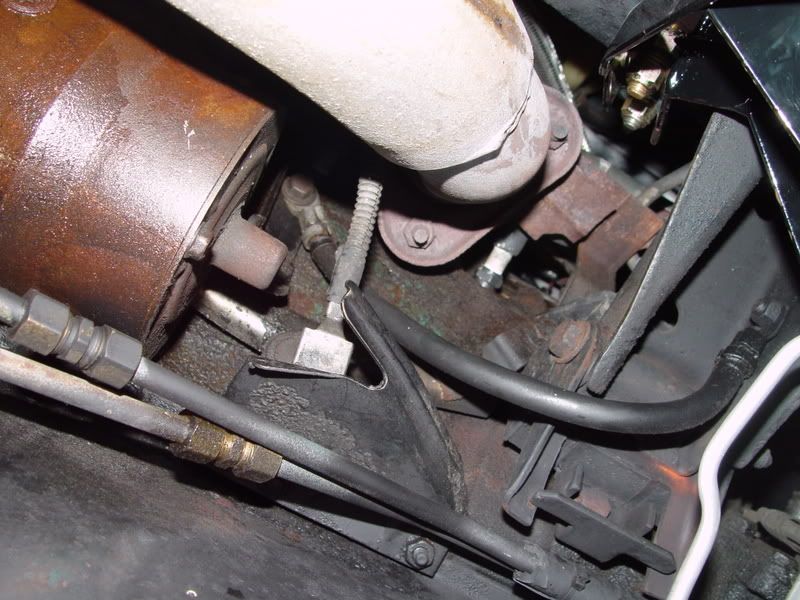

Dan, Joel is correct, what you have there is the wiring for the "detonation sensor" the sensor screws into the engine block behind the starter and under a "V" shaped sheet metal sheild. The sensor has one pin sticking out of the center of it. To reattach the wiring, press in on the sides of the metal casing of the connector, this will allow you to push the connector onto the sensor, when you release the metal casing, the sides spring out and hold the connector in place. Sorry it took so long to get you an answer but unfortunately, work comes first. Crossfire1982 2009-02-23 14:49:38
Thank you!! I believe that this is the answer.
Once there is a little more light in the garage, and it is well above 32 degrees out, I'll get back under there and try to re-attach.
Never doubt the power of the C3VR!!
Lifetime MemberModerator
Duncanville, TX - USA
Joined: 11/8/2003
Posts: 20214
Vette(s): #1-1974 L-48 4spd Cp Med Red Metallic/Black deluxe int w/AC/tilt/tele./p/w-p/b/
Am-Fm/map light National/Regional/Chapter NCRS "Top Flight"
#2-1985 Bright Red/Carmine Cp.L-98/auto
Member: NCRS, NCRS Texas, Corvette Legends of Texas
Thanx, Chip, for the pics of that connector!
Joel Adams
C3VR Lifetime Member #56
My Link
(click for Texas-sized view!) NCRS
"Money can't buy happiness -- but somehow it's more comforting to cry in a CORVETTE than in a Kia"
Former Member
Send PM
Oak Creek, WI - USA
Joined: 5/21/2008
Posts: 1965
Vette(s): 1981 Great White Shark. Red Interior, 350/190 hp. PS, PB (SS), A/C CC, T-Tops. Served three years in Active Duty Army, then Retired Air Force after 34 years! Badger State Vettes Car Club. 175,000 Original miles!! Now own a 1998 C-5!
That would be the answer!! I do not see
m to have that wiring on my vette!!
