Topic: LED Lights?

in Forum: C3 Electrical

LED Lights?

Posted: 11/21/08 1:20pm Message 1 of 4
Former Member
Send PM
Leavenworth, KS - USA
Joined: 1/24/2007
Posts: 426
Vette(s): MM Red 1971 T-top,LS5,4-speed, black leather C5 seats, Hooker sidepipes. Previous: 64 Coupe, 65 Roadster L76 / N14
Just wondering if anyone has replaced rear bulbs with LEDs? If nuttin's broke, then I start lookin' fer things to break!

Seriously, I'm considering rear bubble lenses on my 71 with LEDs (all four). Actually have nice B/U lights that fit in the exhaust cuttouts (switched to Hookers and sidepipes, so the holes are open). I thought I'd splice into the harness where necessary. Think I would also need an LED-compatible flasher unit for the turn signals.

Anyone tried any of this?? I'd appreciate hearing about the trials and tribulations B4 I dig in.

And before I get the "why" question, "why not?" Not much else is stock or numbers matching anymore.


SPONSOR AD:: (Our Sponsors help support C3VR)

LED Lights?

Posted: 11/21/08 2:53pm Message 2 of 4
Profile Pic
Former Member
Send PM
Frederick, MD - USA
Joined: 9/8/2003
Posts: 3398
Vette(s): 1969 convertible L71 427/435 4-speed black interior
I haven't tried the LED lights myself, but others say they aren't nearly as bright.  What I use in my '69 is halogen 1157 and 1156 bulbs.  They are twice as bright, though more expensive, to be sure.  A halogen bulb puts out more heat, but the glass bulb is smaller and leaves more space between it and the lens.

I bought mine from JC Whitney several years back, but I've seen them available at Pep Boys and similar stores now.

If you need a new flasher, there are electronic flashers available that maintain a constant flash rate, regardless of the voltage.



LED Lights?

Posted: 11/21/08 4:43pm Message 3 of 4
Former Member
Send PM
Canada
Joined: 6/23/2008
Posts: 558
Vette(s): 1972, 1980

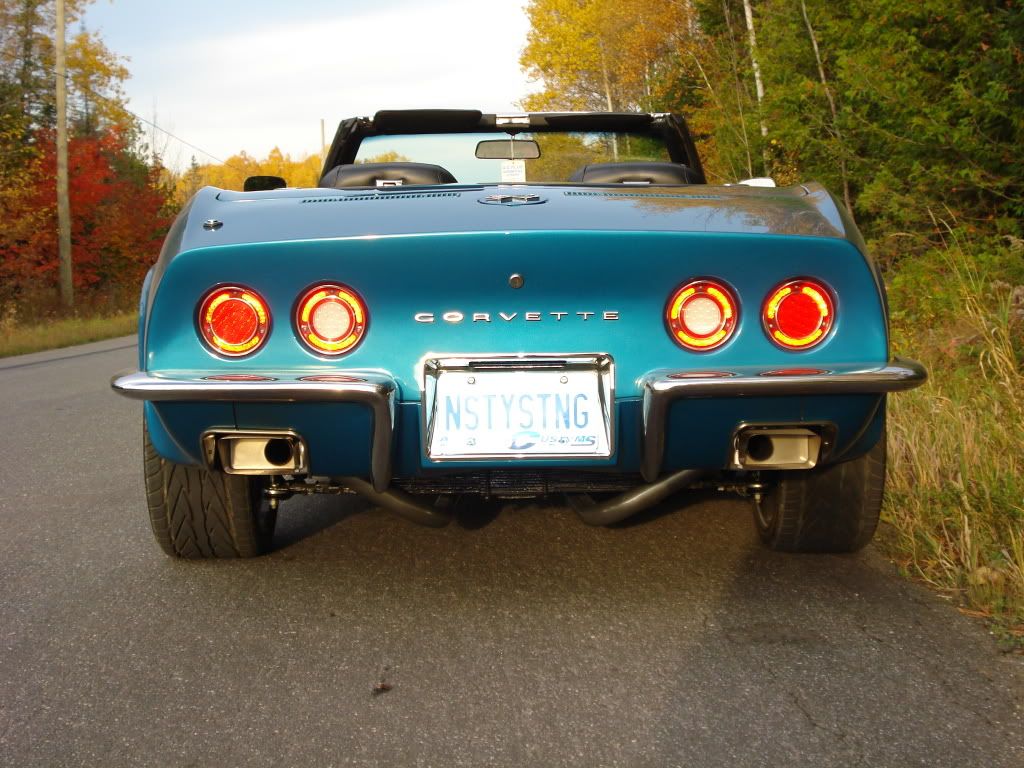

The photo below show the sun reflection on the LED tail lights, they light up in the inside ring and reflect on the out side. The back up lights are a cool white light in the center.
The lights are bright and the back up lights are bright even in daylight.
Installation is plug and play, take out the old put in the new, your old backing remains, just remove the lens and take out the bulbs. The LED has a pig tail which plugs into the 1157 socket and the back up plugs into the 1156 socket, no splicing or cutting.
John



LED Lights?

Posted: 11/24/08 3:09pm Message 4 of 4
Profile Pic
Lifetime MemberLifetime Member
Send PM
Joined: 7/2/2006
Posts: 8205
Here is a link to some cool LED lamps:   http://www.ledtronics.com/products/cat1.aspx?P=C0D6
