Topic: Vacuum Line INFO

in Forum: C3 General Discussion


Already a Member? Click Here to Login

Vacuum Line INFO

Posted: 10/5/09 6:16pm Message 1 of 5
Profile Pic
wetvet
Standard Member
Send PM
Lake Oswego, OR - USA
Joined: 10/17/2003
Posts: 559
Vette(s): 1972 Steel Cities Gray T Top. Original Owner, Original Paint and Interior. The running gear has been rebuilt. only 250,000 miles on the clock..

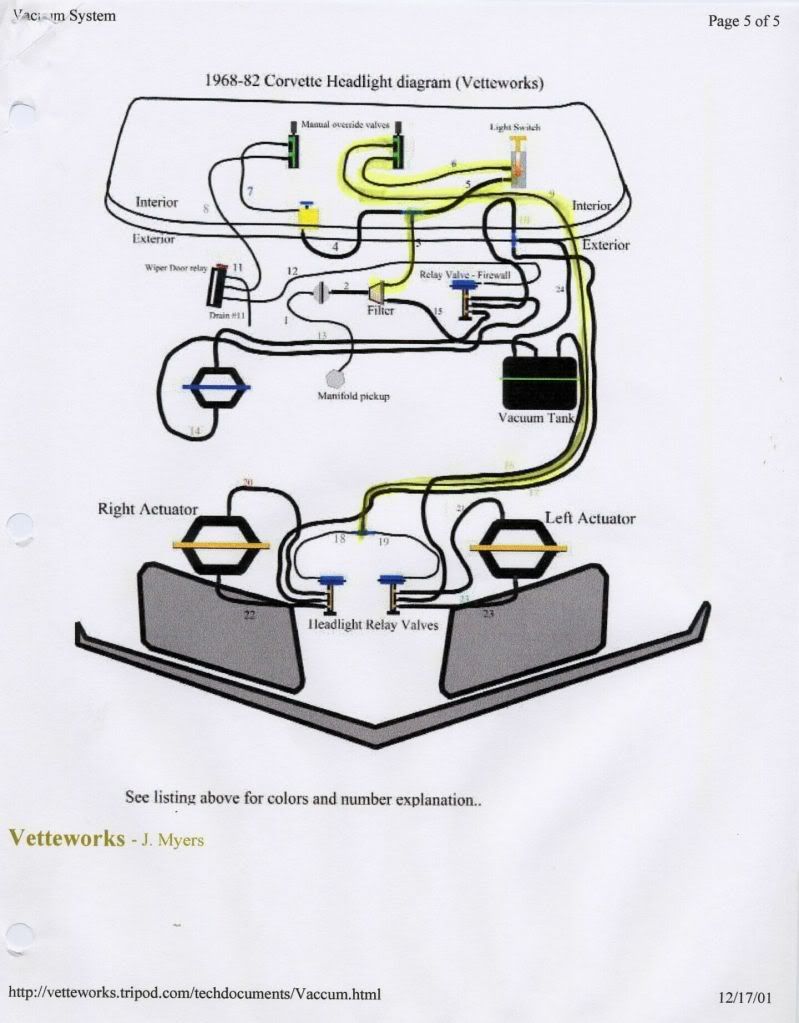

Here is the layout for the vacuum layout.


(large image modified to link)
Adams' Apple2010-01-10 08:46:27



(click to see a larger image)


"It Takes A Little Longer To Do It Right"
"It Takes A Lot Longer To Do It Again"



SPONSOR AD:: (Our Sponsors help support C3VR)

Vacuum Line INFO

Posted: 10/5/09 6:58pm Message 2 of 5
Profile Pic
dskopp
Former Member
Send PM
Oak Creek, WI - USA
Joined: 5/21/2008
Posts: 1965
Vette(s): 1981 Great White Shark. Red Interior, 350/190 hp. PS, PB (SS), A/C CC, T-Tops. Served three years in Active Duty Army, then Retired Air Force after 34 years! Badger State Vettes Car Club. 175,000 Original miles!! Now own a 1998 C-5!

EXCELLENT PHOTO !

DAN







(click to see a larger image)



Vacuum Line INFO

Posted: 10/6/09 2:43pm Message 3 of 5
Profile Pic
aceinthehole
Lifetime MemberLifetime Member
Send PM
Manteca, CA - USA
Joined: 11/20/2005
Posts: 3623
Vette(s): 1978,two tone,Metalic Rootbeer & gold 1975 L48 4 speed
Thanks Steve, that's always handy.


Jimmy B.
Just can't wait to get on the road again.


                             Click to see larger views!

Vacuum Line INFO

Posted: 12/30/09 9:42am Message 4 of 5
brettwhite72
Former Member
Send PM
Quincy, IL - USA
Joined: 12/29/2009
Posts: 21
Vette(s): 1975 Steel Blue Metallic Coupe, 1985 Light Blue 4+3, 1987 Z52 Coupe Black
I have these two.... not sure why the second one is edited... but I hope it helps someone.



(large images modified to links)
Adams' Apple2010-01-10 08:45:59


Vacuum Line INFO

Posted: 1/9/10 5:27pm Message 5 of 5
krz-fasC3
Lifetime MemberLifetime Member
Send PM
Joined: 1/26/2007
Posts: 26
Vette(s): 1973 Coupe -black/red motion stripe, 427 big block,aluminum heads,solid roller cam, 500HP Nitrous plate, QA1 coilovers, 4" drop, 18's 275 F 335 R Racing seats w/ 5 pt. harness. REAL STREET
Corrected diagram is right. The AIM is wrong. I hooked up the way AIM said and had constant vacuum leak. Sounded like hose was unhooked on light swith, you hookup backwards you will know it. Found corrected diagram on this forum, really helped because i was stumped when i pulled switch and did not find a hose unhooked.
